Screen Filters

Comes with an inbuilt air release valve* on the top that also works as a flush valve.
Easy cleaning of the stainless steel mesh filter element as water goes from inside to outside and the suspended matter can be easily unclogged by a water jet on the outer side.
Easy flushing with the help of flushing valve.
Reasonable prices.
2 filters attached in parallel are available. This double filter arrangement helps in pressurized flushing of the filters by just operating the inlet valves.
Spares and replaceable parts available at reasonable prices.
Filtration is must if the plot is irrigated using thin walled drip lines

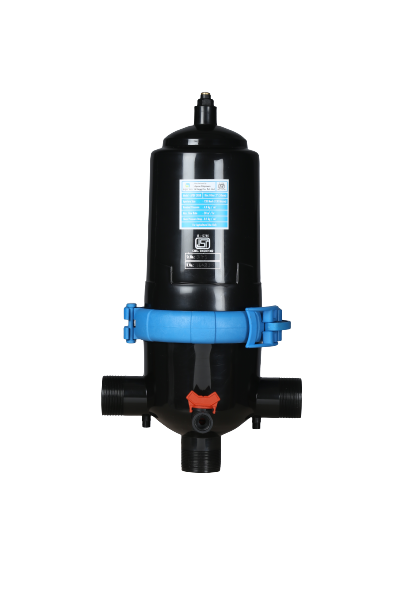

There are two types available in disc filters:

Inlet / outlet size : 2″ (50mm), 2.5″(65mm), 3″(80mm)
{Types : Ultra and Super}
Flow Capacity: 10m/hr to 60m/hr
Degree of Filtration : 130 microns
It is Manufactured from Non toxic, UV stabilized & chemical resistant Engineering plastics
Filter assembly is easy to clean & installation, noncorrosive & opaque
Filter element has large filtration area

Inlet / Outlet size : 3/4″, 1″, 1 1/4″, 1 1/2″ and 2″
{Types : Ultra and Super}
Flow Capacity: 5 m/hr to 20 m/hr
Degree of Filtration : 130 microns
It is Manufactured from Non toxic, UV stabilized & chemical resistant Engineering plastics
Filter assembly is easy to clean & installation, noncorrosive & opaque
Filter element has large filtration area
